| Product Details | |
|---|---|
| Brand | Cummins |
| Model | A-C220S |
| Country of Origin | China |
| Certificate | CE |
| Payment & Shipping Terms | |
|---|---|
| Price Quote | According to customer's specific needs |
| Minimum Order | 1 Unit |
| Average Delivery Time | 30 Days |
| Payment Method | T/T,L/C |
| Package Details | Plastic Foam Package |
| Ability to Supply | 500 Set / Month |

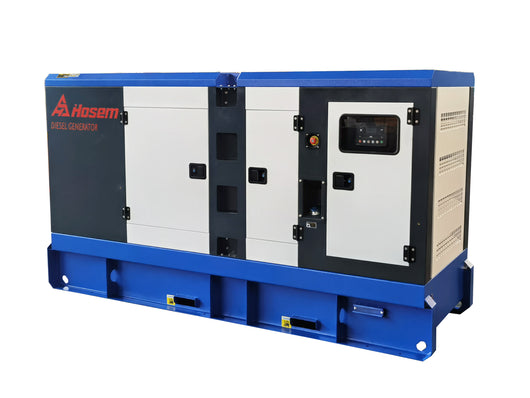

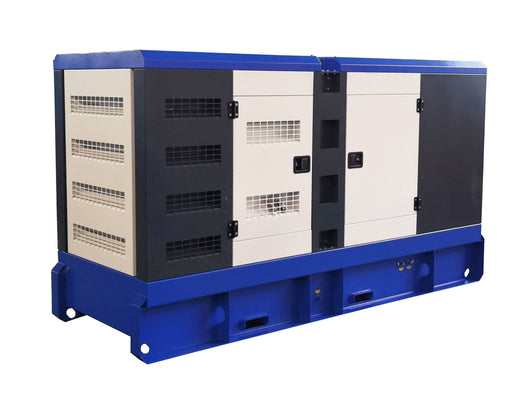

220kVA 200kVA Cummins Silent Canopy Diesel Generator | By 6CTAA8.3-G2 Engine
The 200kVA Cummins Silent Diesel Generator is designed to provide reliable, efficient, and quiet power for both standby and continuous operation. Powered by the world-renowned Cummins 6CTAA8.3-G2 engine, it offers exceptional performance, low fuel consumption, and exceptional durability.

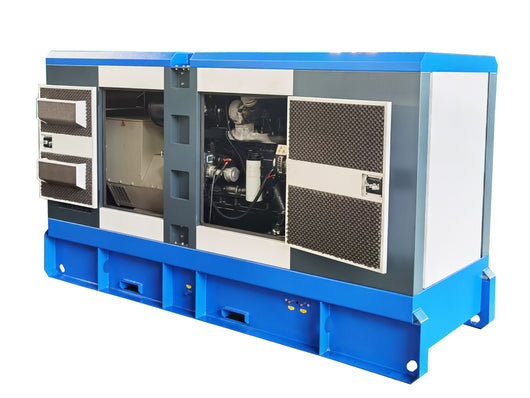

220kVA Cummins diesel engine Manufactured with Dongfeng Cummins Engine Co., Ltd., the 6CTAA8.3-G2 engine features a 6-cylinder, turbocharged, air-to-air aftercooled system that ensures stable power output and fast response to load changes. With 24V electric starting system guarantees reliable startup.Fuel tank supports up to 8–10 hours of continuous operation, while the compact soundproof enclosure (3600×1130×1900mm) is easy to transport and install.
This 200kVA Cummins diesel genset with Deep Sea DSE6120 controller provides intelligent monitoring and complete protection for the entire system. It includes automatic shutdown and alarms for conditions such as high coolant temperature, low oil pressure, overload, low fuel level, and start-up failure.
| Generator Set Specification | ||
| Model | A-C220S | |
| Max. Power | kVA | 220 |
| kW | 176 | |
| Rate Power | kVA | 200 |
| kW | 160 | |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 288.7 |
| Fuel Tank Capacity | L | 370 |
| Dimension For Open-type Genset | mm | 2500 X 1050 X 1500 |
| Weight For Open-type Genset | kg | 1600 |
| Dimension For Soundproof Genset | mm | 3600 X 1130 X 1900 |
| Weight For Soundproof Generator | kg | 2000 |
| Noise Level for Soundproof Generator at 7M | dBA | 75 |
| Battery | Two of Free Maintenance Battery | |
| Engine Specification | ||
| Engine Manufacturer | Dongfeng Cummins Engine Co., Ltd. | |
| Engine Brand | Cummins | |
| Engine Model | 6CTAA8.3-G2 | |
| No. of Cylinder | 6 Cylinder in line | |
| Aspiration | Turbocharged and Air to Air Aftercooled | |
| Governor | Electric | |
| Engine Max. Output Power | kW | 201.3 |
| Displacement | L | 8.3 |
| Compression Ratio | 18.0 : 1 | |
| Starting Voltage | V | 24 |
| Bore | mm | 114 |
| Stroke | mm | 135 |
| Lubrication Oil Capacity | L | 20 |
| Intake Air Flow | M3/Min | 16.8 |
| Fuel Consumption at 100% Load | L/H | 45 |
FAQ:
Q1: Where is the 200kVA Cummins Generator Set from??
A: The Cummins Diesel Generator Set is made in China.
Q2: How long does it take to deliver this diesel generator set?
A: The delivery time for diesel generators is usually around 30 days.
Q3:What is the packaging of 220kVA Cummins diesel generator?
A: Plastic Foam Package.
Q4: What is the power output of the Cummins Generator Set?
A4: The prime power is 200kva, standby power is 220kva.
