| Product Details | |
|---|---|
| Brand | Hosem |
| Model | 1106A-70TG1 |
| Country of Origin | China |
| Certificate | CE |
| Payment & Shipping Terms | |
|---|---|
| Price Quote | According to customer's specific needs |
| Minimum Order | 1 Unit |
| Average Delivery Time | 30 Days |
| Payment Method | T/T |
| Package Details | Wooden Package or Plastic Foam Package |
| Ability to Supply | 800 Set / Month |

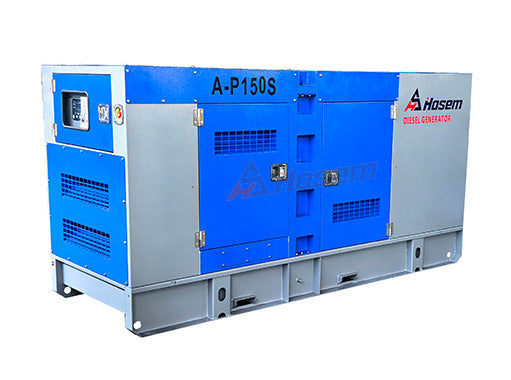

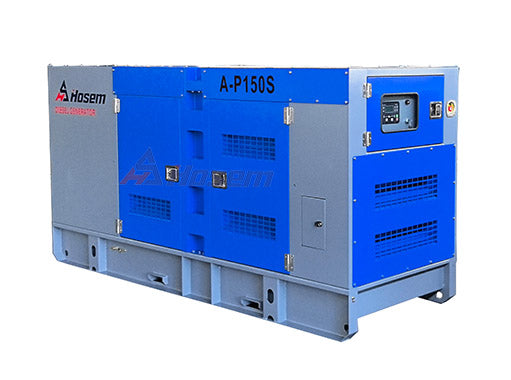

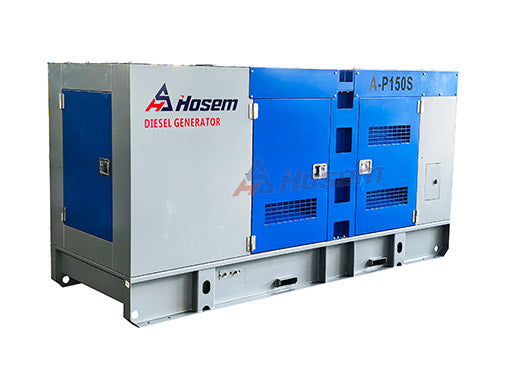

150kVA Perkins Diesel Generator with 1106A-70TG1 Engine | Soundproof Silent Type for Industrial & Commercial Use
The 150kVA Perkins diesel generator, equipped with the 1106A-70TG1 engine, provides reliable power for industrial and commercial operations. Its 6-cylinder inline configuration ensures smooth and reliable performance. Its soundproofed housing reduces noise levels in sensitive environments like offices, hospitals, or schools, allowing it to operate even in areas with acoustically sensitive operating requirements.
150kVA diesel generator is equipped with a Smartgen HGM6120 control panel that provides comprehensive protection and monitoring, including alarms and automatic shutdowns for high coolant temperature, low oil pressure, overload, low fuel level, and battery voltage issues. Optional controllers from Deepsea, Smartgen, or ComAp can also be provided to meet specific customer requirements.
| Generator Set Specification | ||
| Model | A-P150 | |
| Max. Power | kVA | 150 |
| kW | 120 | |
| Rate Power | kVA | 138 |
| kW | 110 | |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 198.5 |
| Fuel Tank Capacity | L | 250 |
| Dimension For Open-type Genset | mm | 2450 X 800 X 1400 |
| Weight For Open-type Genset | kg | 1390 |
| Dimension For Soundproof Genset | mm | 3100X 1080 X 1600 |
| Weight For Soundproof Generator | kg | 1850 |
| Noise Level for Soundproof Generator at 7M | dBA | 75 |
| Battery for Starting | One of Free Maintenance Battery | |
| Engine Specification | ||
| Engine Manufacturer | Perkins Engines Company Limited | |
| Engine Brand | Perkins | |
| Engine Model | 1106A-70TG1 | |
| No. of Cylinder | 6 Cylinder in line | |
| Aspiration | Turbocharged | |
| Governor | Electric | |
| Engine Max. Output Power | kW | 136.9 |
| Displacement | L | 7.0 |
| Compression Ratio | 18.2 : 1 | |
| Starting Voltage | V | 12 |
| Bore | mm | 105 |
| Stroke | mm | 135 |
| Lubrication Oil Capacity | L | 16.5 |
| Intake Air Flow | M3/Min | 9.4 |
| Fuel Consumption at 100% Load | L/H | 30.2 |
FAQ:
Q1: Where is the 150kVA SDEC Generator Set from?
A: This Perkins Diesel Generator Set is from China.
Q2: How long does it take to deliver this diesel generator set?
A: The delivery time for diesel generators is usually around 30 days.
Q3:What is the packaging of 120kW diesel generator?
A: Wooden Package or Plastic Foam Package.
Q4: What is the power output of the Perkins Generator Set?
A4: The prime power is 138kva, standby power is 150kva.
