| Product Details | |
|---|---|
| Brand | Yangdong |
| Model | A-YD18S |
| Country of Origin | China |
| Certificate | CE/ISO9001 |
| Payment & Shipping Terms | |
|---|---|
| Price Quote | Negotiable |
| Minimum Order | 1 |
| Average Delivery Time | 30 days |
| Payment Method | T/T or L/C |
| Package Details | Stretch Film or Plywood |
| Ability to Supply | 500 units per month |
Technical Details
| Generator Set Specification | ||
| Model | A-YD18S | |
| Max. Power | kVA | 18.0 |
| kW | 14.4 | |
| Rate Power | kVA | 16.0 |
| kW | 12.8 | |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 23.1 |
| Dimension For Open-type Genset | mm | 1200 X 700 X 1250 |
| Weight For Open-type Genset | kg | 520 |
| Dimension For Soundproof Genset | mm | 2100 X 1000 X 1200 |
| Weight For Soundproof Generator | kg | 730 |
| Noise Level at 7 Meters | dBA | 65-70 |
| Fuel Tank Capacity | Liters | 75 |
| Battery | One of Free Maintenance Battery | |
| Engine Specification | ||
| Engine Manufacturer | Yangdong Co., Ltd. | |
| Engine Brand | Yangdong | |
| Engine Model | YND485D | |
| No. of Cylinder | 4 Cylinder in line | |
| Aspiration | Naturally Aspirated | |
| Governor | Electric | |
| Engine Max. Output Power | kW | 17 |
| Displacement | L | 2.156 |
| Starting Voltage | V | 12 |
| Bore | mm | 85 |
| Stroke | mm | 95 |
| Lubrication Oil Capacity | L | Forced Water Cooling |
| Compression Ratio | 18 : 1 | |
| Intake Air Flow | M3/Min | N.A. |
| Fuel Consumption at 100% Load | L/H | 4.7 |
| Alternator Specification | ||
| Alternator Manufacturer | Fuzhou Hosem Power Co., Ltd. | |
| Alternator Model | ASF164D | |
| Alternator Brand | Hosem | |
| Rate Output | kVA | 15 |
| Frequency | Hz | 50Hz |
| Current | A | 21.7 |
| Insulation | Class H | |
| Voltage Regulation | SX460 | |
| Protection Grade | IP23 | |
| Working Temperature without Output Decrease | ≤1000m | |
| Phase | 3 Phase | |
| Temperature Rise | 125 Degree Celsius | |
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional | |
Product Advantages

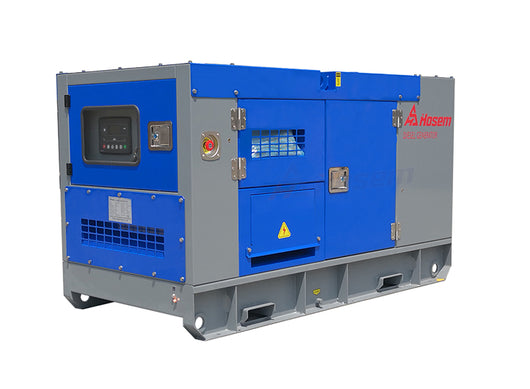

1. Designed with a soundproof canopy, this Yangdong diesel generator operates quietly, making it perfect for noise-sensitive environments.
2. The generator features an automatic protection system, including alarms for low oil pressure and overload, ensuring safe operation.

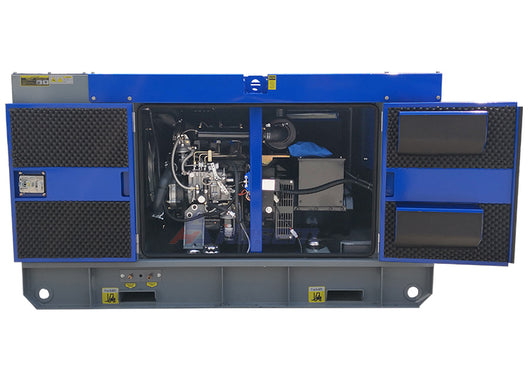

3. Low vibration levels from the Yangdong engine reduce stress on the generator, improving overall longevity and reliability.
4. The 16kVA diesel generator is an excellent solution for both prime and backup power needs in homes, offices, and light industrial applications.
5. The generator's high-quality alternator guarantees stable voltage and frequency, making it reliable for sensitive electronic equipment.
FAQ
Q1: What is the rated output of this Yangdong diesel generator?
A1: The generator provides a rated power of 16kVA, offering stable performance for both standby and continuous use.
Q2: Can it be customized?
A4: Yes, Hosem Power can customize your Yangdong diesel generator according to your specific requirements and applications.
Q3: What kind of after-sales service do you provide?
A5: We offer full technical support, spare parts supply, and maintenance guidance to ensure your generator runs smoothly.
