| Product Details | |
|---|---|
| Brand | Hosem |
| Model | 6KTAA25-G32 |
| Country of Origin | China |
| Certificate | CE |
| Payment & Shipping Terms | |
|---|---|
| Price Quote | According to customer's specific needs |
| Minimum Order | 1 Unit |
| Average Delivery Time | 30 Days |
| Payment Method | T/T |
| Package Details | Plastic Foam Package |
| Ability to Supply | 500 Set / Month |

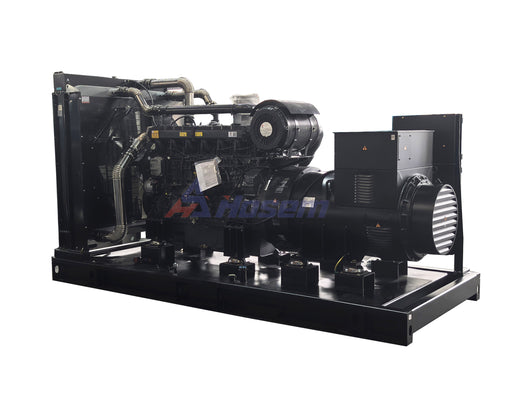

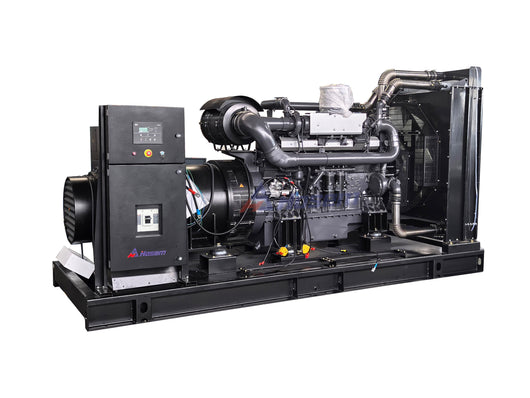

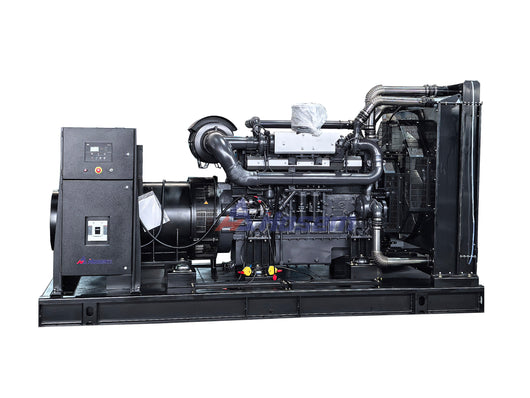

750kVA SDEC Diesel Generator | Open Type 600kW Genset with 6KTAA25-G32 Engine
This 750kVA SDEC Diesel Generator features an open type design and provides 600kW prime power and 660kW standby power at 50Hz, delivering reliable and efficient electricity for industrial, commercial, and backup applications. Powered by the SDEC 6KTAA25-G32 6-cylinder inline diesel engine, it is equipped with turbocharging and air-to-air aftercooling, ensuring stable performance.
The open design is suitable for users with less stringent noise requirements. Compared to soundproof generator sets, it is more cost-effective and easier to maintain, providing practical benefits for daily operation.
This 600kW SDEC diesel generator features a rugged design and is built to last. The open type facilitates operation and maintenance, making it a practical choice for projects requiring a cost-effective power solution without the need for a canopy.
Key Features of 750kVA SDEC Diesel Generator
-
Reliable SDEC Engine: Powered by the 6KTAA25-G32 6-cylinder inline engine，delivering stable and efficient power output.
-
Cost-Effective Open Type Design: Offering easier maintenance and lower initial cost compared to soundproof.
-
Water-Cooled System: Equipped with a robust water-cooled system to ensure stable operation and long-term durability under continuous load.
-
Low Maintenance: Supplied with two free-maintenance batteries and high-quality components.
-
Advanced Control: Features an electric governor for precise engine speed regulation and reliable performance.
| Generator Set Specification | ||
| Model | A-SH825 | |
| Max. Power | kVA | 825.0 |
| kW | 660.0 | |
| Rate Power | kVA | 750.0 |
| kW | 600.0 | |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 1082.6 |
| Dimension For Open-type Genset | mm | 3900 X 1600 X 2100 |
| Weight For Open-type Genset | kg | 5750 |
| Dimension For Soundproof Genset | mm | 5200 X 2100 X 2450 |
| Weight For Soundproof Generator | kg | 8150 |
| Noise Level at 7 Meters for open type | dBA | 120 |
| Fuel Tank Capacity | Litres | 1000 |
| Battery | Two of Free Maintenance Battery | |
| Engine Specification | ||
| Engine Manufacturer | Shanghai Diesel Engine Co., Ltd. | |
| Engine Brand | SDEC | |
| Engine Model | 6KTAA25-G32 | |
| No. of Cylinder | 6 Cylinder in line | |
| Aspiration | Turbocharged and Air to Air Aftercooled | |
| Governor | Electric | |
| Engine Max. Output Power | kW | 754 |
| Displacement | L | 25.180 |
| Starting Voltage | V | 24 |
| Bore | mm | 175 |
| Stroke | mm | 185 |
| Lubrication Oil Capacity | L | 70 |
| Compression Ratio | 14.5 : 1 | |
| Intake Air Flow | M3/Min | 53.5 |
| Fuel Consumption at 100% Load | L/H | 163.0 |
FAQ:
Q1: Where is the 750kVA SDEC Generator Set from??
A: The SDEC Diesel Generator Set is from China.
Q2: How long does it take to deliver this diesel generator set?
A: The delivery time for diesel generators is usually around 30 days.
Q3:What is the packaging of 600kW diesel generator?
A: The packaged in plastic foam package.
Q4: What is the power output of the SDEC Generator Set?
A4: The prime power is 750kva, standby power is 825kva.
