| Product Details | |
|---|---|
| Brand | Hosem |
| Model | A-D280H |
| Country of Origin | Fuzhou, China |
| Certificate | ISO9001, CE, SASO, IEC 60034, CSA, ISO8525/3, UL 1446 |
| Payment & Shipping Terms | |
|---|---|
| Price Quote | USD15000.00-USD17000.00 |
| Minimum Order | 1 Set |
| Average Delivery Time | Within 30days after get the firm order. |
| Payment Method | T/T or L/C |
| Package Details | Ply-wood or plastic film Packing |
| Ability to Supply | 500 Set / Month |

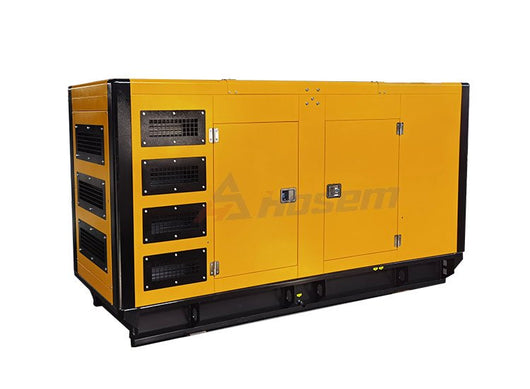

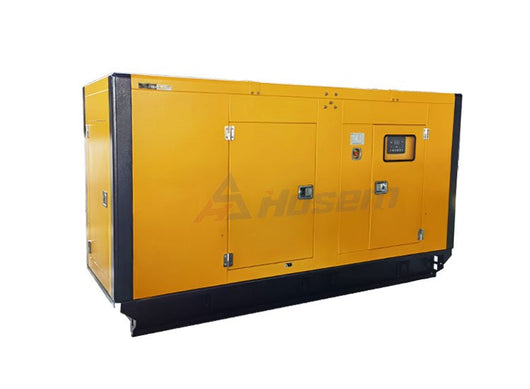

Silent Power Generator Doosan 255kVA Water Cooled Genset
| Model | A-D280H | |
| Standby Power | kVA | 280 |
| kW | 224 | |
| Prime Power | kVA | 255 |
| kW | 204 | |
| Frequency | Hz | 60 |
| Output Voltage | V | 240 |
| Oil Consumption | L/H | 0.06 |
| Dimension For Open-type | mm | 2700 X 950 X 1600 |
| Weight For Open-type | kg | 2160 |
| Dimension For Soundproof | mm | 3100X 1200 X 1700 |
| Weight For Soundproof | kg | 2750 |
| Engine Model | DP086LA | |
| No.of Cylinder | 6 Cylinder in line | |
| Bore | mm | 111 |
| Stroke | mm | 139 |
| Displacement | L | 8.07 |
| Cooling Fan Air Flow | m3/min | 450 |
| Compress Air Flow | m3/min | 13.9 |
| Exhaust Gas Flow | m3/min | 31.8 |
| Exhaust Gas Temperature | ℃ | 549 |
| Lubrication Oil Capacity | L | 19 |
| Cooling Water Capacity | L | 14 |
| Starting Voltage | V | 24 |
| Engine Max.Output Power | kW | 253 |
| Alternator Model | UCI 274 H | |
| Alternator Brand | Stamford | |
| Rate Output | kVA | 255 |
| Frequency | Hz | 60 |
| Altitude | M | ≤1000 |
| Insulation | Class H | |
| Protection Grade | IP23 | |
| Alternator for choice | We also have Leroy Somer, Marathon, Mecc Alte and Chinese brand Brushless alternator for your choice. | |
| Control Panel Model | AF500 | |
| Controller | Deepsea Brand Model DSE7320 | |
| Function of control panel | Automatic genset start/stop | |
| Automatic battery charger | ||
| Emergency stop | ||
| AMF (Automatic Mains Fault) | ||
| Remote control | ||
| Micro-processor based design | ||
| LED alarm indication and Sound alarm | ||
| Display of the controller | Generator voltage: Uab, Ubc, Uca | |
| Generator current: Ua, Ub, Uc | ||
| Generator temp.: ℃/℉ both display | ||
| Generator frequency: Hz | ||
| Generator power: kW, kVA, kWh, kVAr, kVArh, kVAh | ||
| Generator starts count: 999999 times (Max) | ||
| Generator pressure: kPa/Psi/Bar both display | ||
| Charging Voltage: V | ||
| Battery Voltage: V DC | ||
| Protection of Diesel Generator | Over / Under Speed Alarm and Shutdown | |
| Start / Stop Failure Alarm | ||
| Over Current Alarm and Shutdown | ||
| Under / Over Generator Voltage Alarm and Shutdown | ||
| Low Oil Pressure Alarm and Shutdown | ||
| High Engine Temperature Alarm and Shutdown | ||
| Over Load Alarm and Shutdown | ||
| Low and High Battery Voltage Alarm | ||
| Lose of Speed Signal Alarm and Shutdown | ||
| Charge Fail Alarm | ||
1. Stater and Charge Alternator: The generator features a 12V and 24V stater and charge alternator, providing reliable starting and charging capabilities.
2. Cooling Radiator: The water cooled diesel generator with a cooling radiator system is integrated into the generator, efficiently dissipating heat and maintaining optimal engine temperature.
3. Maintenance-Free Battery: The generator includes a maintenance-free battery with a reactive and cable system, ensuring hassle-free operation.
4. Flexible Fuel Connection Hoses and Manual Oil Sump Drain Valve: The generator is equipped with flexible fuel connection hoses and a manual oil sump drain valve for easy maintenance and fuel management.
5. Exhaust Silencer: An exhaust silencer is installed to minimize noise and ensure quiet operation.
6. Doosan silent power generator is a reliable and heavy-duty generator that offers an efficient diesel generator solution for a variety of applications. Powered by a Doosan engine, it is supplied for 200kVA to 841kVA power range.
7. Main Applications: Doosan silent power generator is suitable for a wide range of industrial and commercial applications, such as factories, warehouses, hospitals, and data centers. Its simple operation and maintenance make it an ideal choice for a variety of applications.
8. It is also a very reliable choice for emergency power supply, providing reliable and stable power when the grid is down. Its unique design ensures maximum efficiency and safety.
9. It has a certificate of ISO9001/CE and its warranty is 1000 hours or 12 months.
10. With its advanced control panel, Deepsea/Smartgen/ComAp, and electric start generator system, it is an ideal choice for a variety of applications. It is also the most efficient generator and offers excellent value for money.
